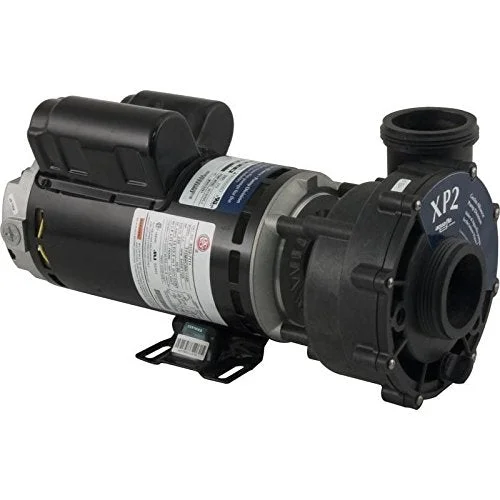

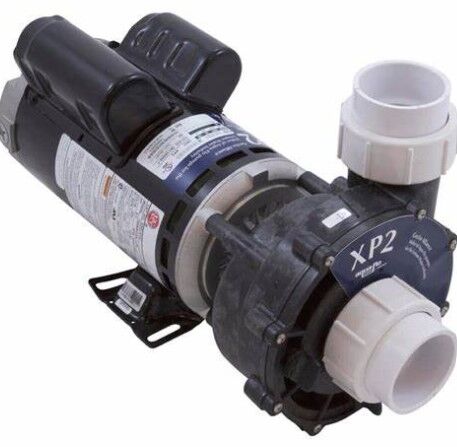

Aqua-Flo®Spa Pump XP2 2.5 Horse Power 230 Volts – 06125000-1040

Original price was: $499.00.Current price is: $469.00.

DESCRIPTION

Features:

  • Genuine OEM Aqua Flo Gecko pump
  • Used a primary two speed heat pump and secondary two speed pump in many spas across manufacturers.
  • 2″ Suction and Side Discharge
  • High flow rates, exceeding 260 GPM
  • Multi-directional volute mountings offer versatility to adapt to any configuration. How to Rotate a Pump Wet End

Product specifications:

  • Horsepower: 2.5
  • Frame: 48
  • Volts: 230
  • Amps: 10/2.9
  • Suction Connection (Physical Dimension): 3-1/16″ OD
  • Discharge Connection (Physical Dimension): 3-1/16″ OD

Technical and Installation:

SKU: 06125000-1040

MPN: 06125000-1040

Model: XP2

UPC: 689145862270

Manufacturer: Aqua-flo® by Gecko®

Warranty: 1 yr. with manufacturer

Aqua-Flo® Spa Pump XP 2.5 Horsepower 230-volt 2-speed pump from Gecko.

Also known as:06625451-2 06525466-2 (4.8 SPL) 06625399-2 (4.8 SPL) 06625326-206625462-2 0662327-2 05525794-2 (5.0 SPL) 06525488-206525082-1 06625312-2 0982601 05625008-206625509-2 06625395-2 06125854-1 05620005-206625080-1 06625775-2 05625001-2 0982601-02 (Power Right)06625770-2 (4.8 SPL) 06125474-2 06525355-2 (4.2 SPL) 06625003-506125395-2 06625397 065263397-2 (5.0 SPL) 06025474-206625877-1 06625499-2 05625387-2 05525005-5 (1speed)06625887-1 06625792-2 06125717-1 (Caldera) 0662579-206525689-2 06625705-2 06625488-2 06625387-206625462-5 06625315-2 06625894-l 05625012-506625797-2 06625449-2 06625287-1 05625287-106625396-2 06625793-2 06625606-1 06125000-106125395-2040 06625485-2 06625174-1 05025002-506525690-2 06625489-2 (4.8 SPL) 06625002-2 06125717-106525397-2 06625395-2 06625000-1 101970105625010-5 06625894-1 06626327-2 6125000-104006525794-2 06125275-1 06125283-0 05625489-206525082-2 06025732-1 06625279-2 06625339-106626462-5 06626462-2 06625451-2 07323325-206626315-2 06125474-2 06625395-2 05525009-5 (1Speed)06625312-2 (73023) Wavemaster 9200 06620500-2 06525003-2 (1Speed)06025834-6 06626462-2 06626334-2 (4.8 SPL)

Note: OEM Aqua Flo/Gecko®

Aqua-Flo Supplying your needs

_________________________________________________________

Trust the experts for top-quality spa parts at unbeatable prices!

SKU: 06125000-1040 Category: Tags: , , , Brand: Brand: , ,

Related products

Recently Viewed Products

    Aqua Flo Spa Pump XP2 2.5 Horse Power 230 Volts 06125000 1040

    The Aqua Flo Spa Pump XP2 2.5 Horse Power 230 Volts 06125000 1040 is a reliable, high output spa pump engineered to deliver superior jet performance and efficient water circulation. Designed for spas that require strong water pressure and steady flow, this pump offers long lasting performance, quiet operation, and easy installation.

    Purpose of the Aqua Flo Spa Pump XP2

    This pump provides the power behind your spa’s jet and filtration systems. The 2.5 HP motor generates excellent water flow for an invigorating hydrotherapy experience, while maintaining energy efficiency during filtration cycles. It’s built to handle continuous operation in demanding spa environments.

    Benefits of the Aqua Flo Spa Pump XP2 2.5 Horse Power 230 Volts 06125000 1040

    • Dual speed design for both circulation and jet power
    • Powerful 2.5 HP motor supports high water pressure
    • Compact 48 frame construction for tight installations
    • 230 volt configuration for consistent and efficient performance
    • Smooth, quiet operation reduces vibration and noise

    Technical Specifications

    The Aqua Flo Spa Pump XP2 2.5 Horse Power 230 Volts 06125000 1040 is built to OEM quality standards, ensuring long term reliability and performance.

    • 2.5 HP, 230 volt, 2 speed motor
    • Thermally protected for safety and motor longevity
    • Corrosion resistant wet end and impeller design
    • High flow output optimized for larger spa systems
    • Designed to fit standard 48 frame spa configurations

    Installation Guide

    Installing the Aqua Flo Spa Pump XP2 2.5 Horse Power 230 Volts 06125000 1040 is simple and efficient, even in tight spaces.

    1. Turn off power to the spa system
    2. Remove the existing pump and clear the area of water or debris
    3. Position the XP2 pump and connect the plumbing unions securely
    4. Wire the motor according to your spa’s electrical diagram
    5. Refill the spa and test both high and low speed functions

    Its plug and play compatibility with most 48 frame spa setups makes replacement fast and hassle free.

    Compatibility

    The Aqua Flo Spa Pump XP2 2.5 works with a wide range of spas and hot tubs that use the XP2 system. It’s a direct replacement for many OEM models requiring a 230 volt, 2.5 HP, two speed pump.

    Common uses include:

    • Spas equipped with Aqua Flo XP2 pumps
    • Hot tubs needing powerful jet flow and quiet circulation
    • 48 frame spa systems designed for 230 volt operation

    Maintenance Recommendations

    Regular maintenance keeps the Aqua Flo Spa Pump XP2 2.5 operating smoothly and efficiently.

    • Clean filters frequently to prevent flow restriction
    • Inspect seals and unions for any leaks
    • Wipe the pump exterior to remove dust or moisture
    • Avoid running the pump dry to protect the impeller and seals

    With proper care, this model provides years of strong, dependable spa performance.
