SKU: 56WUA400-II

MPN: 56WUA400-II

UPC: 600358155454

Manufacturer: Guangdong Lingxiao Pump Industry Co., Ltd. (LX)

Warranty: directly with manufacturer.

Features:

• Quiet operation
• Includes unions and O-rings

Product specifications:

• Horsepower: 4.4HP
• Voltage: 230V
• Frequency: 60Hz
• Amperage: 12.0/4.0A
• Frame Rate: 56Y
• Motor Speed: 2-Speed
• Inlet/Outlet: 3″ OD
• Discharge Type: Side
• Front Face Plate: 7-1/2″ (Outside Dimension)

Technical and Installation:

• Pump is shipped in the wet-end orientation shown. Please review How to Rotate a Pump Wet End
• Most pumps are shipped without a cord, and you will need to use your existing cord or purchase a new amp cord.
• Please see How to Wire a Spa Pump and the “related products” below to purchase replacement amp cord.

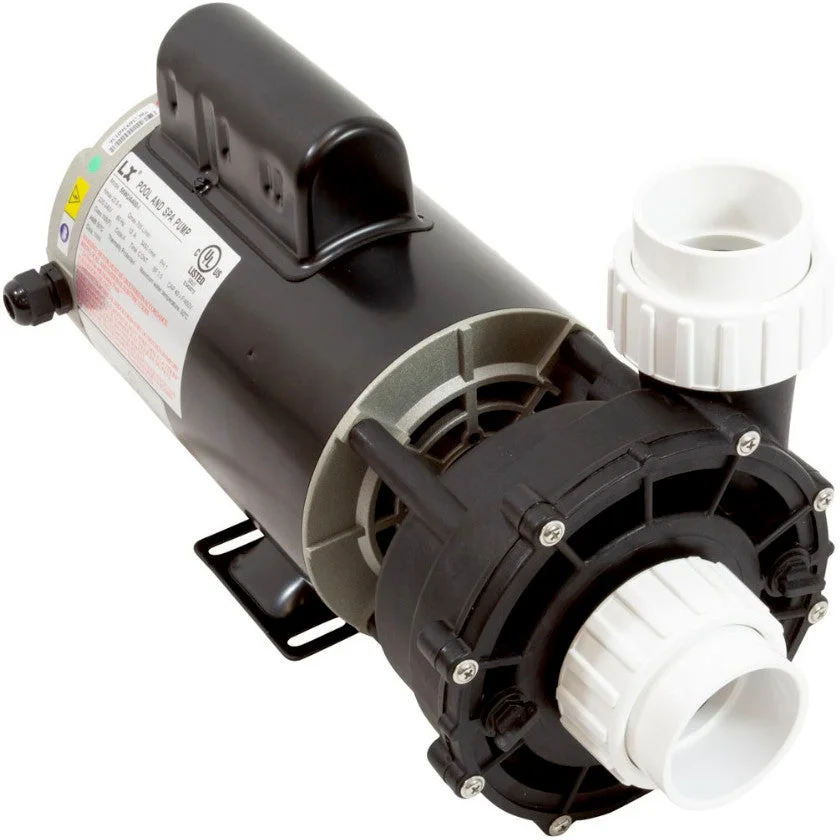

The 56WUA400-II LX Pump is a versatile replacement for multiple pumps, including the Waterway® Executive (4.0 HP, 56 frame) Pump, Energy Saver 430-0052, and Jacuzzi/Sundance® Theramax 6500-352, 6500-365, and 6500-363. It is a 2-speed pump with a current rating of 12.0/4.4 Amps, featuring a 2″ inlet and 2″ side discharge. Additionally, it can be used as a 1-speed pump by connecting the high-speed terminal and leaving the low-speed unconnected, using a 3-wire 1-speed pump cord instead of a 4-wire 2-speed pump cord.

Also known as HydroMaster BX4117-S2, 56WUA400-2/6

LX Lingxiao® providing good pumps
