LX Circulation Pump 1/15 Horse Power 115/230 Volts 48FR, 48WTC0153C-I

(1 customer review)

$139.00

DESCRIPTION

SKU: 48WTC0153C-I

MPN: 48WTC0153C-I

Model / Series: WTC0153C-I

UPC: 600358155423

Manufacturer: Guangdong Lingxiao Pump Industry Co., Ltd. (LX)

Warranty: directly with manufacturer.

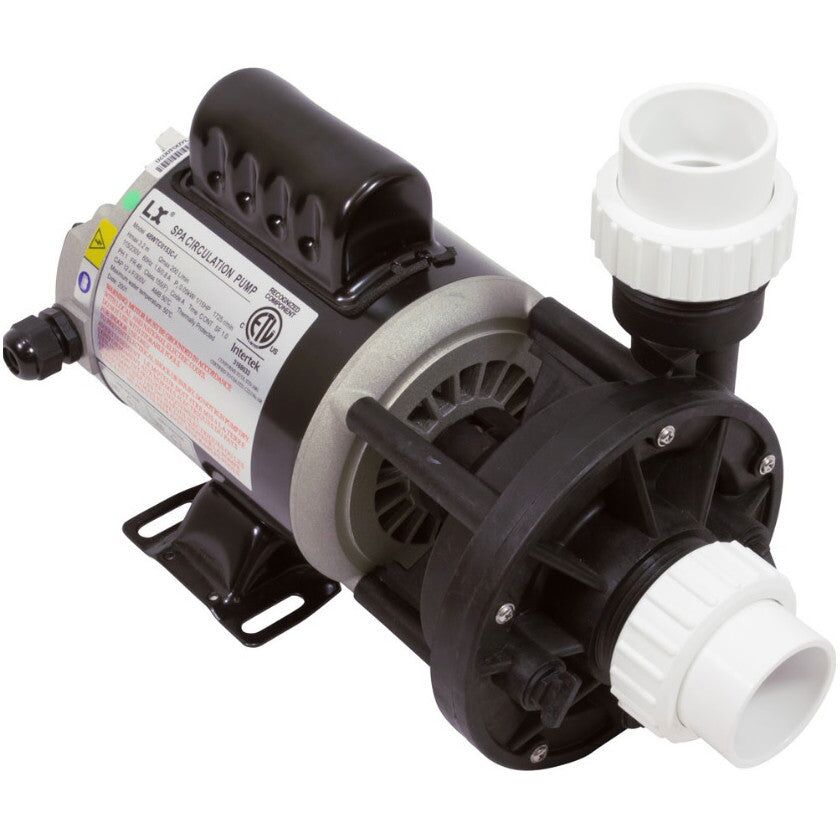

The LX Circulation Pump, model 48WTC0153C-I, is a 1/15HP pump with a 1-speed motor. It features a 48 frame and can operate at either 115V or 230V. The amp draw is 1.6 at 115V and 0.8 at 230V. This pump is equipped with a 1-1/2″ inlet and a 1-1/2″ side discharge. It is specifically designed for use on Sundance® spas manufactured before 07/11/2011.

The LX pump is a suitable replacement for Aqua Flo/Gecko CMHP 1/15HP pumps with the same specifications, including 115/230V, 1-speed, 48-frame, 1-1/2″ inlet, and 1-1/2″ discharge. It can also be used as a replacement for Waterway® circ pumps that match these specifications.

Features:

Power requirements:

  • Frequency: 60Hz
  • Motor Voltage: 115/230V
  • 1.6 Amps at 115 Volts
  • Amperage Draw:
  • 0.8 Amps at 230 Volts

Product specifications:

  • Horsepower: 1/15HP
  • Dimensions: 12-7/8″ L x 7″ W x 8-1/4″ H
  • Inlet Size: 1-1/2″
  • Motor Speed: 1-Speed
  • Discharge Style: Side
  • 1-1/2″ union with a side discharge
  • Discharge Size: 1-1/2″
  • Frame Rate: 48Y (Thru-Bolt)

Technical and Installation:

  • Pump is shipped in the wet-end orientation shown. Please review How to Rotate a Pump Wet End
  • Most pumps are shipped without a cord, and you will need to use your existing cord or purchase a new amp cord.
  • Please see How to Wire a Spa Pump and the “related products” below to purchase replacement amp cord.

Replacement for Part Numbers (among others):

02410512-2 (230V), 02093635-2 (115V), 02408492-2 (230V), 02410362-2 (115V), 02408492-2 (230V), 02403466-2 (230V), 02093644 (115V), 02093634-2 (230V), 02093636-2 (115V), 02403695-2 (230V), 321810 (115V), 02093759-2 (230V), 02403649-2 (230V), PCIRC48F1S240V

LX Lingxiao® providing good pumps
