6500-352 Jacuzzi/Sundance/D1 Baseless Spa Pump TheraMax 2.5 HP 230 Volts 56FR – 1 Speed

• Used on Dimension One April 2023+ Triad and as the 2nd 1 speed pump for other Reflections models, in addition to Jacuzzi, Sundance, and other manufacturers.

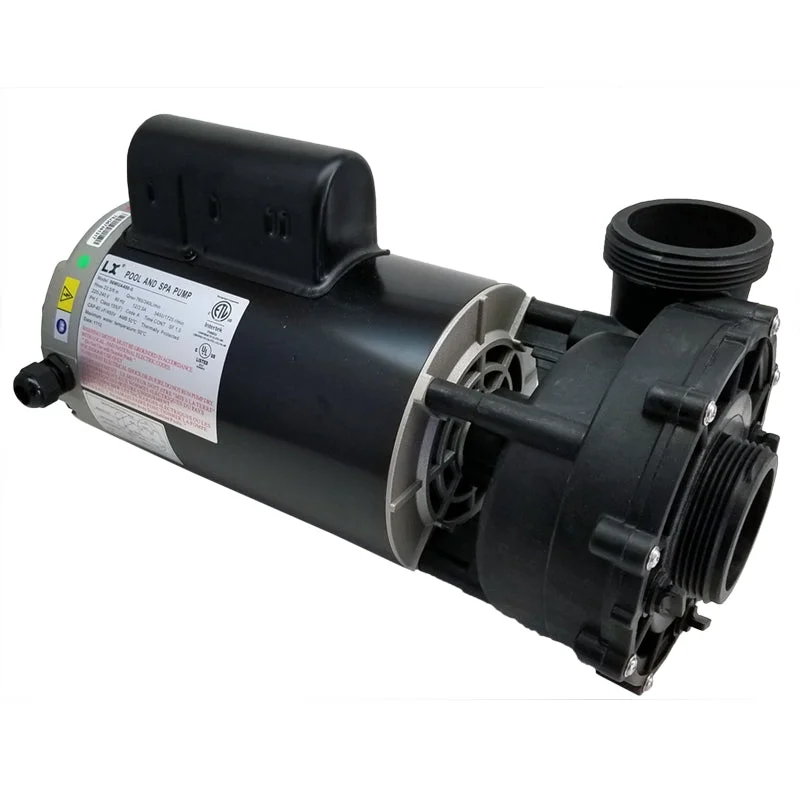

• OEM Pump can be replaced with 56WUA400-II LX Lingxiao Spa Pump 4.0 Horse Power 230 Volts 56FR Baseless and wire high speed only.

SKU: 6500-352

MPN: 6500-352

Model: Theramax

UPC: 689145859256

Manufacturer: Sundance/Jacuzzi®

Warranty: 1 yr. (with manufacturer)

Features:

• Rotate the pump to any position.
• Baseless

Product specifications:

• Horsepower: 2.5
• 1 Speed
• 56 Frame
• 230 Volts-240 Volts
• 2″ Suction and Discharge
• Side Discharge

Technical and Installation:

• Pump is shipped in the wet-end orientation shown. Please review How to Rotate a Pump Wet End
• Most pumps are shipped without a cord, and you will need to use your existing cord or purchase a new amp cord.
• Please see How to Wire a Spa Pump and the “related products” below to purchase replacement amp cord.

Sundance/Jacuzzi® Spa Pump, 2.5 Hp, 240 Volt, 1 Speed, 56 Frame Complete With 56 Frame Bracket.

Note: Bracket part number is Jacuzzi/Sundance® 6000-535

The pump features a removable motor base, enabling you to easily adjust its position as needed. It includes both an electrical cord and motor base, allowing you to quickly start using it. Additionally, the 6500-352 model is equipped with a 2″ threaded intake and discharge, allowing you to utilize your existing unions (although we do suggest replacing the union O-rings when installing the new pump).

Replacement part: (more economic option, same functionality): 56WUA400-II LX

Jacuzzi® excellence in Hydrotherapy
