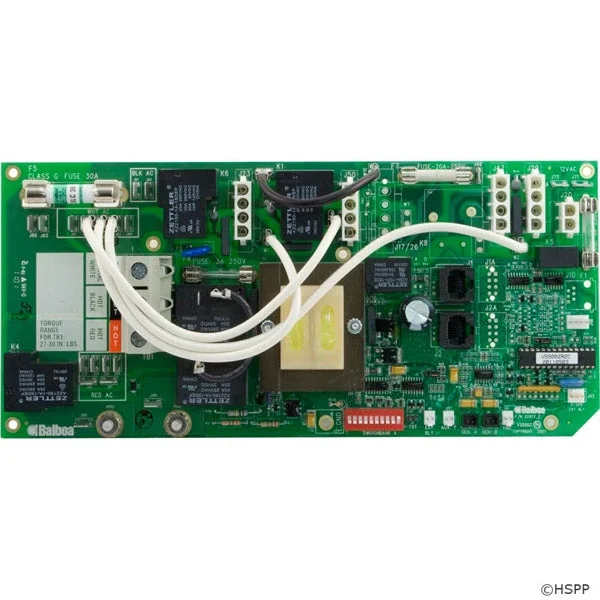

54369 Balboa Circuit Board VS500

The 54369 Balboa Circuit Board VS500 is an original replacement board designed for Balboa spa control systems. It manages critical spa operations such as heating, pumps, lighting, and filtration. Built with durable components and advanced circuitry, it delivers dependable performance and compatibility with many Balboa VS series systems.

Note: The 54369 circuit board has been replaced with part number 54357, which will be sent as the current and compatible replacement.

Function of the 54369 Balboa Circuit Board VS500

This circuit board serves as the central control hub of your spa, regulating communication between components and ensuring each system operates safely and efficiently. It is responsible for controlling temperature settings, pump speeds, and filtration cycles while protecting against overheating or electrical faults.

Highlights of the 54369 Balboa Circuit Board VS500

• Factory designed to meet Balboa’s original specifications

• Direct replacement for VS500 series spa systems

• Fully compatible with Balboa 54357 updated model

• Supports single or dual pump configurations depending on setup

• Coordinates heating, lighting, ozone, and filtration functions


Design and Build

The 54369 Balboa Circuit Board VS500 is built with reliability and longevity in mind. Each board features a high quality PCB layout that resists moisture, heat, and corrosion—common issues in spa environments. Its smart design ensures accurate signal control and long term electrical stability.

Compatibility

This circuit board fits Balboa VS500 spa control systems and select models that use similar wiring and component layouts.

Compatible with:

• Balboa VS500 and VS501 spa systems

• Spas using Balboa control packs with 240 volt operation

• Configurations requiring control of up to two pumps, heater, and ozone system


Replacement Information:
The 54369 board has been discontinued and replaced by Balboa 54357, which functions as a direct upgrade with full backward compatibility.

Installation Overview

Replacing the 54369 Balboa Circuit Board VS500 is straightforward for those familiar with spa electronics.

1. Turn off all power to the spa

2. Remove the old circuit board from the control pack

3. Carefully connect all wiring to the new board following the same positions

4. Secure the board in place and restore power

5. Test all spa functions for proper operation


It’s recommended to photograph wiring connections before removal for accurate reinstallation.

Maintenance Tips

• Keep the control pack area dry to prevent corrosion

• Periodically inspect wire terminals for tight connections

• Avoid exposing the board to direct water or condensation

• Ensure proper ventilation in the equipment area for cooling


With the updated Balboa 54357 replacement, your spa system will continue to operate smoothly with improved reliability and efficiency.
