SKU: 54357

MPN: 54357-03, 54357-04

Model: VS501Z

UPC: 0852673917235

Manufacturer: Balboa Water Group®

Warranty: 1 yr. with manufacturer

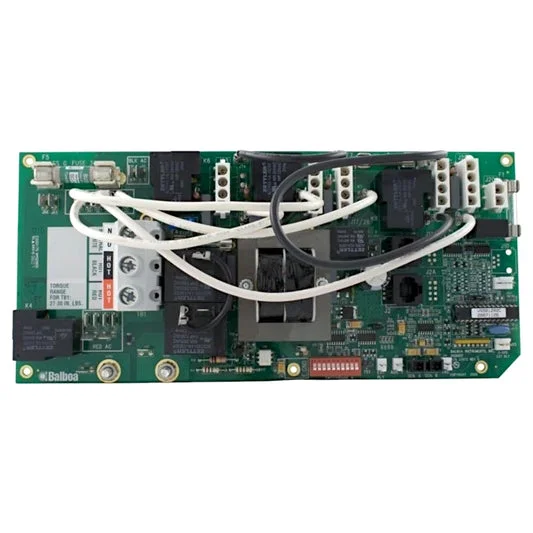

Circuit Board, Balboa, VS501Z, Duplex Digital,54357 Balboa® spa circuit board for VS501Z series, M7 technology. This circuit board works with a variety of mini oval and lite deluxe topside panels. This board uses M7 technology so there is no pressure switch needed.

Features:

• CHIP: VS501Z
• Circuit Board Model: PS6502B Series
• VS501Z 54356 54357 Tech Sheet

*All circuit boards will require correct board voltage install, and component voltage set-up by moving the component wires on the board, in addition to setting dipswitches correctly. Some configuration on the topside may also be required. Please reference the wiring schematics*

Product Specifications:

• 1 Speed Pump or A Blower (120 or 240 volts)
• Light (12 Volts)
• Auxiliary Accessory
• Ozone (Voltage must match pump 1)
• Circulation Pump (120 Volts or 240 Volts, if used a minimum of 30 gallon per minutes is required for the heater)
• 2 Speed Pump (120 or 240 volts)

Notes: If running 2 pumps, total pump amps cannot exceed 12 amps each

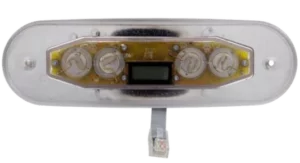

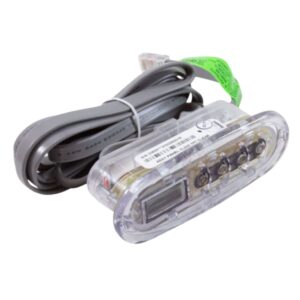

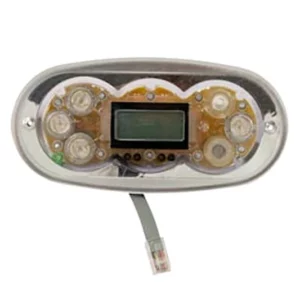

This circuit board works with the following serial deluxe topside control panels (among others): 53646, 54094, 51676.

Alternates: 54357-01, 54357-02, 54357-03, INF107

Replaces: 33-0032B-K, 33-54357-K, 330032B, 54357, 54357-01, 54357-02, 54357-03, 54357- , INF107R1A, OS501ZR1A, SCS501R1A, VKV502R1, VS240RR, VS501R1B, VS501ZR1, VS501ZR2B

Also replaces: 167R1B, 301362, 33-0032B, 33-0032B-K, 33-54357-K, 330032B, 54294-01, 54357 ,54357-01, 54357-02, 54357-2, 623554, 9710-71, BB54357, GVS501R1A, INF107R1A, INFI07R1A, OS501ZR1A, SCS501R1A, VKV502R1, VS240RR, VS501R1B, VS501ZR1, VS501ZR2B,54357-04,54357-03,54357-02,54357-01.

Note: Control panels that work with this circuit board include Balboa 54094, 52144, 55049KIT and 51676 and others.
