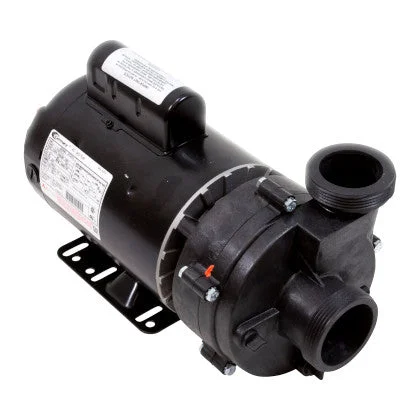

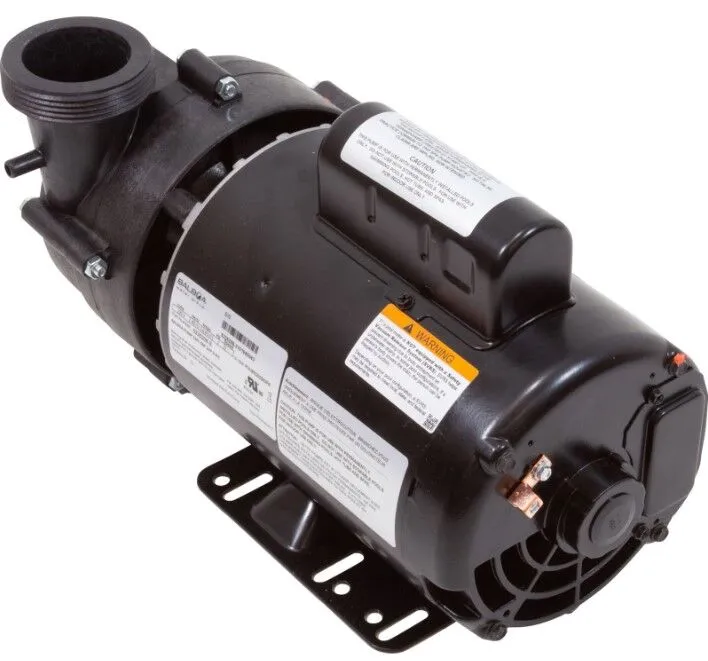

1016204 Balboa®2-Speed Pump Vico Ultimax 2 HP 230 Volts 8.8/3.0 Amp

SKU: 1016204

MPN: 5235208-B

Model: Vico Ultimax®

Manufacturer: Balboa Water Group®

Warranty: 1 yr. with manufacturer

• Please see How to Wire a Spa Pump and the “related products” below to purchase replacement amp cord.
• Multi-directional volute mountings offer versatility to adapt to any configuration. How to Rotate a Pump Wet End

Features:

• Efficient and cool-running 56-frame motor.
• High flow rates, exceeding 325 GPM, for peak performance in luxury applications.
• Multi-directional volute mountings offer versatility to adapt to any configuration. How to Rotate a Pump Wet End
• All seals feature carbon ceramic with Viton elastomers, ensuring long-lasting performance and resilience against prolonged heat and chemical exposure.
• Certified by UL, TUV, CSA, CE/VDE/GS for safety and compliance.
• Uses wet end 1215185 Balboa® Wet End Vico Ultimax 2.0 Horse Power 48/56 Frames Side Discharge

Product Specifications:

• 2 Horse Power
• 2-Speed
• 56 Frame
• 230V
• Amperage: 8.8 (High Speed) / 3 (Low Speed)

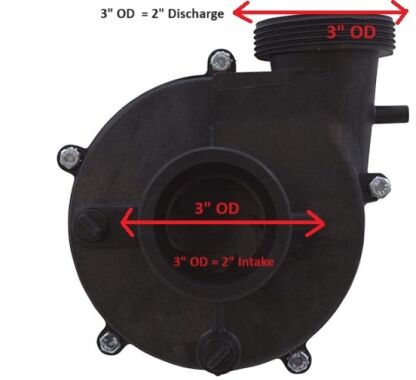

• Intake Size: 2″
• Discharge Size: 2″ (Side Discharge)
• Inlet/Outlet Diameter: 3″ (Outside Diameter)

Technical and Installation:

• Pump is shipped in the wet-end orientation shown. Please review How to Rotate a Pump Wet End
• Most pumps are shipped without a cord, and you will need to use your existing cord or purchase a new amp cord.
• Please see How to Wire a Spa Pump and the “related products” below to purchase replacement amp cord. *When wiring a pump, the white cord always needs to be on “C”/Common.  The Red and Black are for Pump speeds (H and L/High and Low)*

 Note: The Balboa Water Group Vico Ultimax® Spa Pump is designed for small applications (zone seating and focused therapy) up to multi-pump configurations (can run 100+ jetted systems).

Also known as: PUBFSC2252582F, 1016039 ,1056191, PUUMS2502582F, 1016191, PUMMSC2402582FR, PUUMSC2252582F, PL346, PUUMS2502582F,1016041 – Single Speed, PL347, 1016016, 1016210, PL390, X320377, 1016058, 1016206, HP-130, 1016032, 1016228, PUULSC20258220, 1016168, 1016154, 1016010, 1016030, PUUMSC2402582FR, 1016223, 1016162 BigFoot, PAV6BF, 1016155, 1016163, 1016012 (Balboa), 10-16-030. 1016209, 1016179,1016062, 1016181, 1016182, 1016043 – 1Speed, 1016012 ,1056062, 5235208-B, PUUMC2252582F
