DESCRIPTION

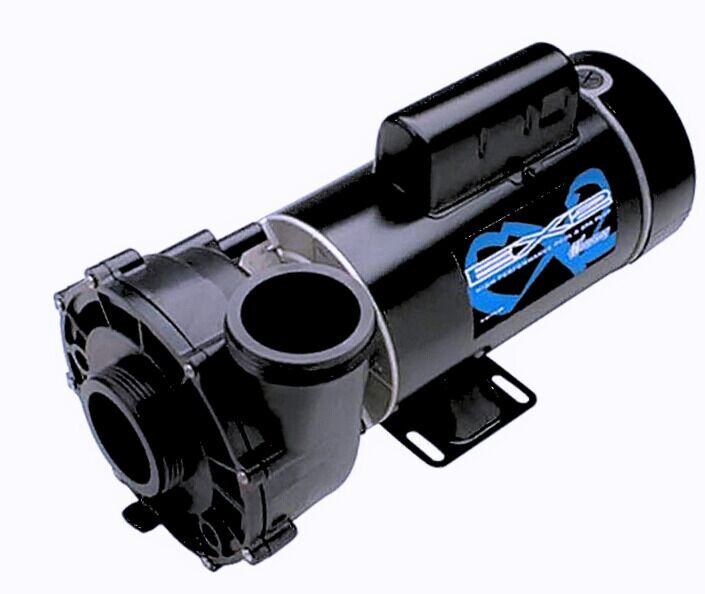

EX-2 Waterway®2 Speed Spa Pump 1.5 HP 115 Volts, 3420610-1U

MPN: 3420610-1U

Manufacturer: Waterway

Manufacturer Warranty: 1 year part

The Waterway EX-2 spa pump (model number 3420610-1U) is a 1.5 HP, 115-volt, 2-speed pump with a 48-frame. It features a 2″ intake and side discharge (measuring 3″ across). Note that EX-2 pumps are also available in a 56-frame style, so check your current pump’s motor label or measure it. Changing frame size is usually not an issue, but alignment may not be perfect.

Waterway EX-2 Features:

• Made in USA from highest quality materials with UL and CUL certifications.
• Equipped with the highest quality Viton Seals. Means this pump can hand salt systems.
• Equipped with high efficiency electrical motors, custom designed for Spa applications.

This Waterway EX-2 Pump Specs:

• 1.5 Horsepower
• 48 Frame
• 115 Volts
• 2 Speed
• 16.4 / 4.4 Amps.
• 2″ Suction and Discharge
• Side Discharge

Technical and Installation:

• Pump is shipped in the wet-end orientation shown. Please review How to Rotate a Pump Wet End
• Most pumps are shipped without a cord, and you will need to use your existing cord or purchase a new amp cord.
• Please see How to Wire a Spa Pump and the “related products” below to purchase replacement amp cord.

Also Known As: WW3420610-1U, WW34206101U, 1-00-0133WW, 34206101U

Documents:

EX-2 Pump Wiring Instructions Here

Waterway® excellence in innovation

Parts manufacturers reserve the right to change motors, specifications, and style/appearance without notice. Product shown may differ from fulfilled item, but the functionality remains the same.
