G6406 Balboa® 4.0 Kw Control Box Bundle Kit with TP600

$599.00

DESCRIPTION

SKU: G6406

MPN: G6406

Model: BP7

UPC: 0731946793458

Manufacturer: Balboa Water Group®

Warranty: 1 yr. with manufacturer

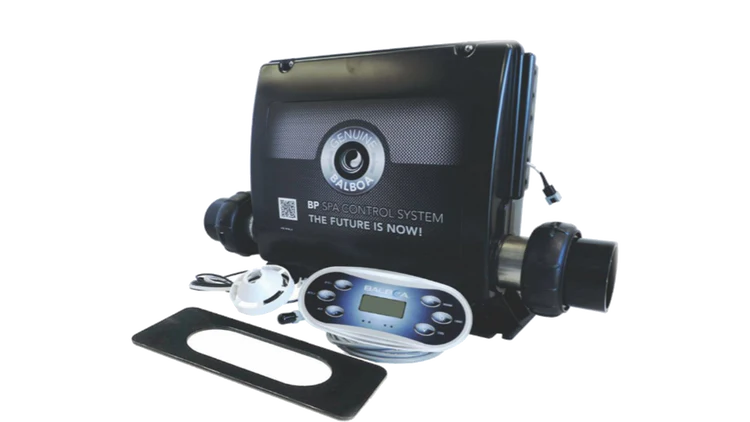

Balboa® Topside Control System Kit BP7 with TP600

Features: The BP7 has 32 different setups and can power a spa with 1-4 pumps, including MicroSilk™ systems. This programmable system can be configured in several different ways. The default is “Setup 21” which is setup to run one 2-speed pump.

  • Supports all TP and SpaTouch™ topsides.
  • Plug-N-Click Heater
  • Wi-Fi Included
  • Kit includes: system, panel, panel adapter plate, light cord and overlay(s)

***All control Systems and circuit boards will require correct component voltage set-up and spa configuration. Please see the “Technical and Installation” below for more information as well as videos for set up and installation. Please also reference the wiring schematics on the back side of the spa pack cover***

Product Specifications:

  • System Voltage: 120/240 Volts
  • Heater Style: Straight/Fixed, Wattage – 4.0 kilo Watts
  • 3rd Circuit: 1-Speed Blower or Pump 120/240 Volts
  • Component Configuration: Pump1 + Pump2/Blower + Pump3
  • 2nd Circuit: 1-Speed Blower or Pump 120/240 Volts
  • Main Circuit: 2-Speed Pump 120/240 Volts
  • System comes with a light cord (item number 21089). All other cords sold separately.
  • Spaside Control: Included

Replaces: 389173

Alternates: VS300, VS500Z, VS501Z, VS501SZ, VS503SZ, VS504SZ, VS510SZ, VS510DZ, VS511Z, VS511SZ, VS513Z, VS514SZ, VS515SZ, VS515Z, VS520Z, VS520SZ, VS520DZ, VS525Z

Technical and Installation:

User Interface Guide

Installation Tech Sheet

***Important Configuration Set-up Instructions***

Setting Component Voltages
