SKU: BN60

MPN: BN60

UPC: 786674014450

Warranty: 1 year with manufacturer

Features:

• Spa extra low running
• Above-ground swimming pool
• Jetted tub pumps
• Split Phase
• Capacitor Start & PSC Single – Dripproof – Ball Bearing
• Century Flex 48 LASAR-XL®
• Thru-bolt

Product specifications:

• Horsepower: 1.5HP (1-1/2 HP at higher RPM, 1/4 HP at lower RPM)
• Voltage: 115 Volts
• Hertz: 60 Hz
• Speed: 2-Speed
• Amperage: 16.4/4.4 Amps (Full Load Amps)
• RPM: 3450/1725
• Capacitor Start
• Frame: 48Y NEMA Frame
• Mount: Thru-bolt
• Base Mounting: 48/56 Frame
• Rotation: CCW Pump End
• Shaft: Threaded
• Shaft Height: 3-1/2”
• 40° C Ambient
• Class B Insulation
• Duty Cycle: Continuous

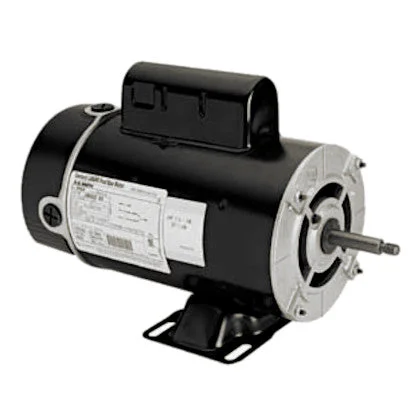

Jetted Tub/Spa/Above ground swimming pool pump motor.  2-Speed Motor,1.5HP, 48FR, 115V Thru-Bolt

Optional Flex-48 Accessories: Airswitch (#17800901), Single-speed Toggle Switch Assy. – On/Off (#18374501), Day/Night Controller (#18602400), Two-speed Toggle Switch Assy. – Lo/Off/Hi (#18313301).

A.O Smith an innovation name
