SKU: 56WUA300-II

MPN: 56WUA300-II

Model / Series: HydroMaster BX4116-S2

Manufacturer: Guangdong Lingxiao Pump Industry Co., Ltd. (LX)

Warranty: directly with manufacturer.

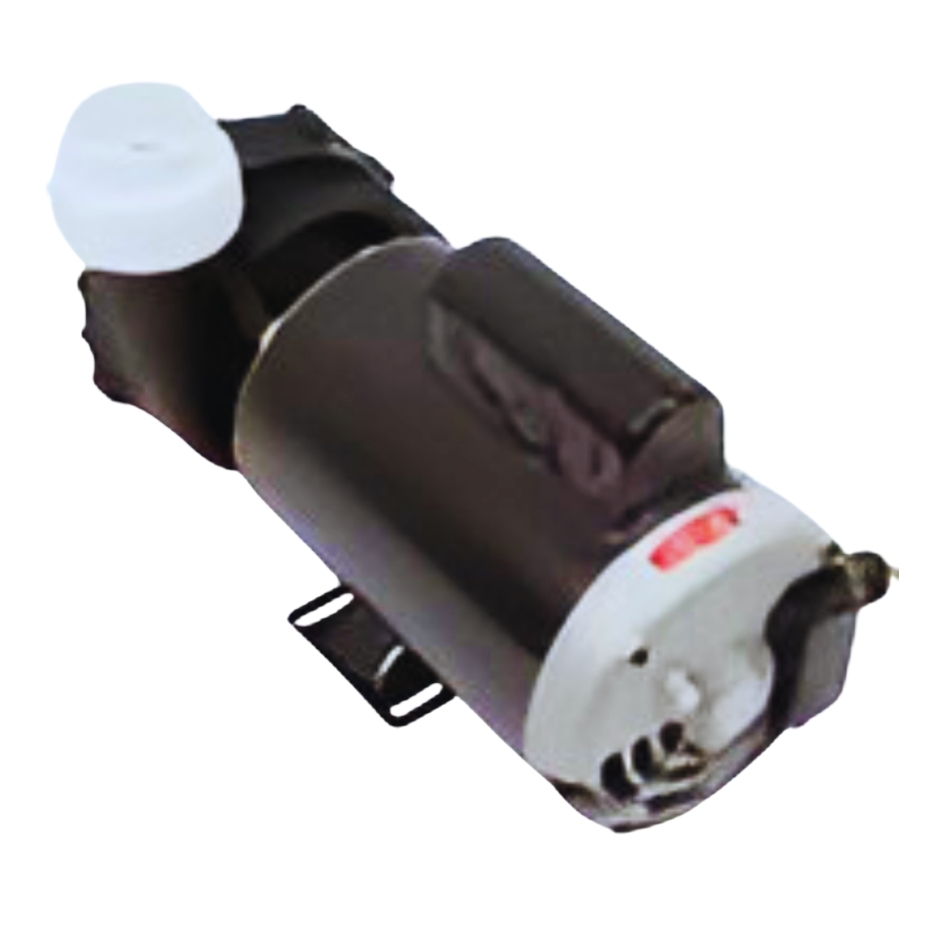

The 56WUA300-II LX Spa Pump is a versatile replacement option for different pumps. It can function as either a 2-speed pump or a 1-speed pump. With a horsepower of 3.0HP and a frame size of 56, it offers flexibility in usage. The pump has a current rating of 10.0/3.5 Amps and features a 2″ inlet and 2″ side discharge. It is commonly used as a substitute for the Aqua Flo XP2e (3.0 HP, 56FR) pump and is also known as the HydroMaster BX4116-S2. Additionally, it can be configured as a 1-speed pump by connecting the high-speed terminal and leaving the low-speed unconnected, utilizing a 3-wire 1-speed pump cord instead of a 4-wire 2-speed pump cord.

Features:

• Includes unions (O-rings sold separately)
• Thermally Protected
• Quiet operation

Power requirements:

• Amperage: 10.0/3.5 Amps
• Frequency: 60Hz
• Motor Voltage: 230 volts

Product specifications:

• Horsepower: 3.0
• Motor Speed: 2-Speed
• RPM: 3450/1725
• Frame Rate: 56Y (Thru Bolt)
• Inlet / Outlet: 3″ OD
• Front Face Plate: 7-1/2″ OD
• Suction Style: Center
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Pipe Size: 2″
• Discharge Style: Side
• Discharge Connection Type: Male Buttress Thread (mbt)
• Discharge Pipe Size: 2″
• Drain Plug Location: 3, 6, 9 o’clock.

Technical and Installation:

• Pump is shipped in the wet-end orientation shown. Please review How to Rotate a Pump Wet End
• Most pumps are shipped without a cord, and you will need to use your existing cord or purchase a new amp cord.
• Please see How to Wire a Spa Pump and the “related products” below to purchase replacement amp cord.

Parts manufacturers reserve the right to change motors, specifications, and style/appearance without notice. Product shown may differ from fulfilled item, but the functionality remains the same.
