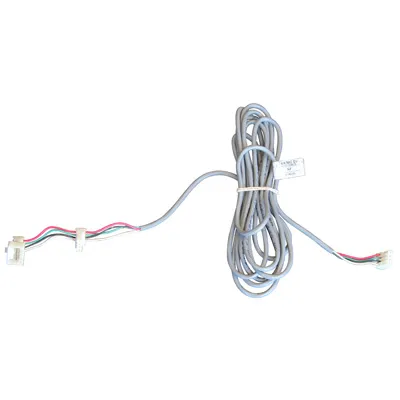

This cable begins on the sequencer pc board. The second connector plugs onto P4 of the main pc board. The third connector accepts the 4-pin connector from the 01580-0001 Upper Control Panel.

Sequencer Board Wiring and Troubleshooting

If there are no lights or activity on your Sequencer Upper Control Panel, try replacing the small fuse at F1. This can be found locally at a Hardware store, or here: Massage Sequencer Fuse – 01710-510

SKU: 01560-620
Manufacturer: Dimension One Spas®
