DESCRIPTION

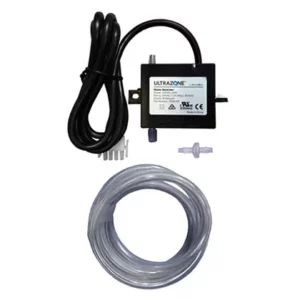

G6412 Balboa® Control System 4.0kW Remote Heater BP100 Bundle w/TP200T (w/ free 59297 ozonator)

SKU: G6412

MPN: G6412-01

Model: BP100

Manufacturer: Balboa Water Group®

Warranty: 1 yr. with manufacturer

Balboa® Control System BP100G2 TP200T remote heater Balboa® BP100 retrofit kit comes with a detached remote 4.0kW heater and a TP200T (4 button) topside control panel. This compact basic control system is ideal to retrofit in small hot tubs with 1 or 2 pumps.

***All control Systems and circuit boards will require correct component voltage set-up and spa configuration. Please see the “Technical and Installation” below for more information. Please also reference the wiring schematics on the back side of the spa pack cover***

Features:

• Lowest cost entry level BP System
• Works with all of Balboa’s TP Panels
• Works with all of Balboa’s SpaTouch™
• Wi-Fi compatible (Sold Separately)

Product Specifications:

• Supply Voltage: 115 Volts, 230 Volts – 4 Wire.
• Heater Type: Remote
• Heater Wattage: 1.0kW, 4.0kW
• Topside Included:  TP200T
• Circ Pump Ready Optional 115 Volts, Optional 230 Volts.
• 50Hz, 60Hz

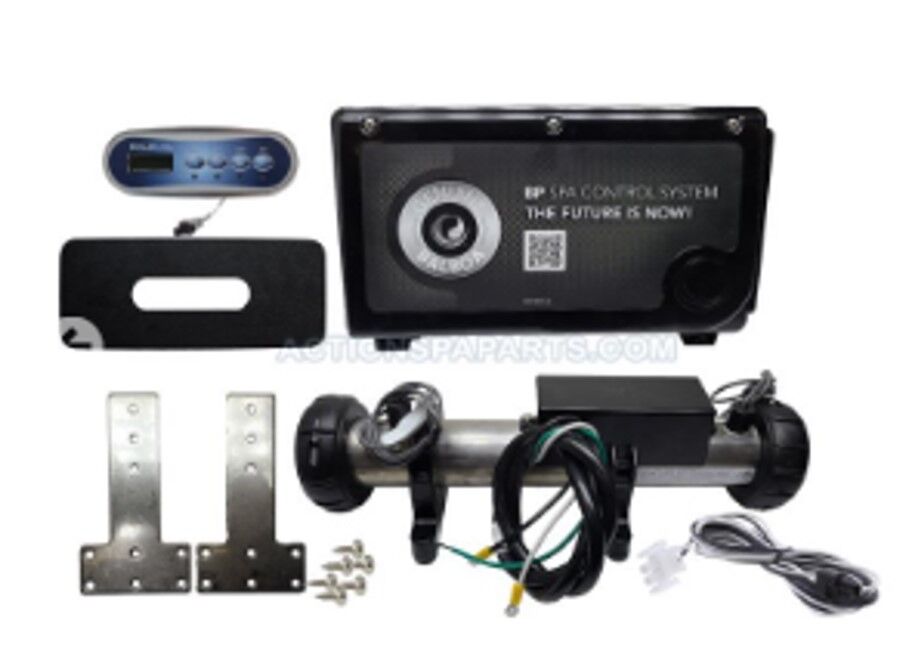

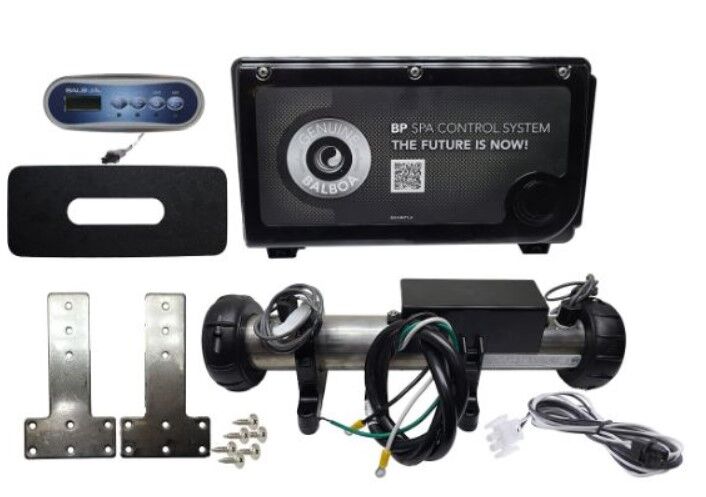

Kit Includes:

• (x1) G4310 – BP100G2 Control System

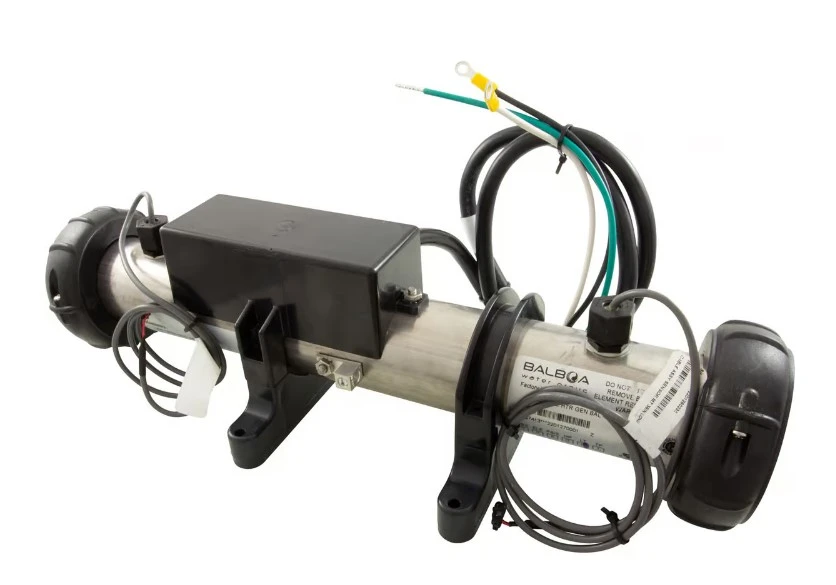

• (x1) G7413 – 4.0kW heater with sensors (15″ x 2″)

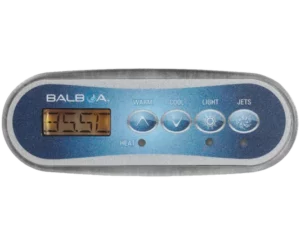

• (x1) 57282 – TP200T Topside control panel. 4.34″ (11.02cm) x 1.58″ (4.01cm)
• (x1) 17325 – Topside control panel overlay (Heat/Jets/Light/Aux buttons)
• (x1) Topside control panel adaptor plate 9″ (22.86cm)x 4″ (10.16cm)
• (x2) Tee shaped pack mounting brackets
• (x1) Light cord, 8′
• (x1) 2 speed pump cord
• Compact size with removable feet
• The system can be mounted with feet or brackets (metal brackets are sold separately)
• Wi-Fi

Technical and Installation:

• BP100 Tech Sheet and Installation
• BP100 G6412 Sell sheet
• G6412 Hot sheet

Notes: Pump 1, Circ Pump and Ozone must be the same voltage. BP systems automatically detect 50Hz vs 60Hz.Runs on 120V for single pump applications (some configuration is required).

It can run:

• One 2-speed pump 120 Volts or 240 Volts** (Max 12.0 Amps)
• Ozonator (120 Volts or 240 Volts**)
• Dedicated circulation pump (min 23 GPM and 1-1/2″ plumbing ) 120 Volts or 240 Volts (Pump #1 must be single speed for circ pump option)
• 2nd single speed pump or blower (120 Volts or 240 Volts)
• 12V light
• Balboa ControlMySpa

**The Balboa BP100G2 is factory configured for 240 volt applications, pump(s) and ozonator must be 240 volts.
