• Voltage:                           115v / 230v
• Power Requirements:      115 or  230 VAC, 60Hz. GFCI Protected Service (3 Wire 115v, 4 Wire 230v)
• Neutral Required:             Yes
• Circuit Breaker Rating:     20A (115v) & 50A (230v)

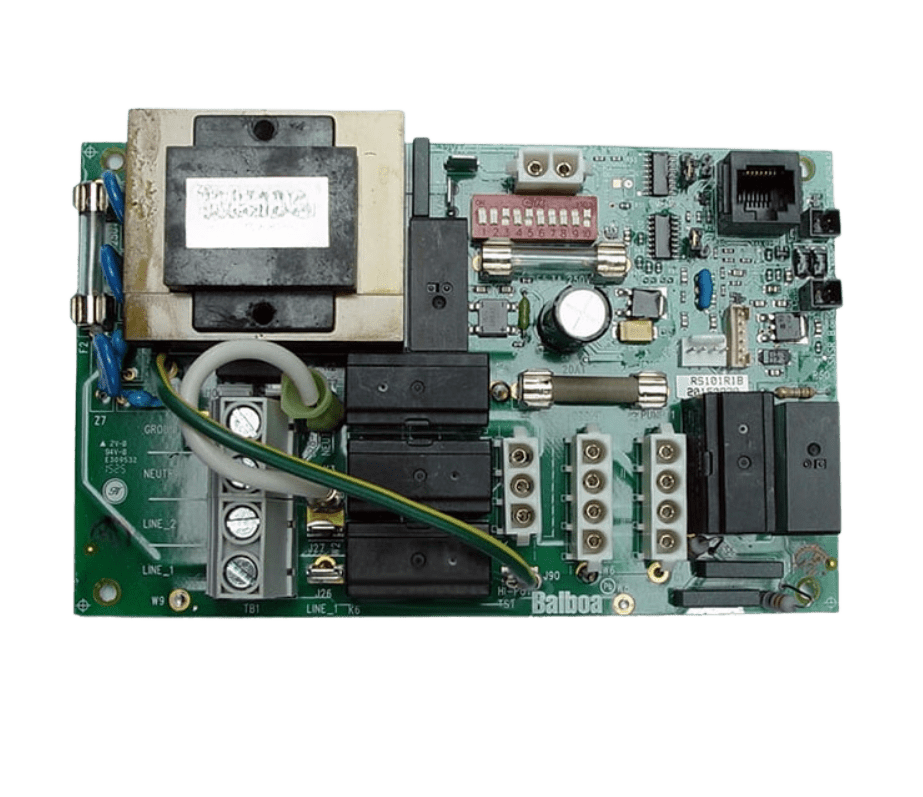

• System Series:                Balboa RS101 DM
• Configuration:                 1 Pump, Ozone, 12v Light
• Keypad Connection:        8 Pin
• Pump #1 Dual Speed
• Ozone
• 12v Light

Chip to be associated with & Control Box Numbers:

• Chip Number:  RS101R1A, RS101R1B , RS101R1C
• Control Box:  56402-05, 56403-03. 56403-04, 56403-05
