• Use: 6600-726 Sundance® Circuit Board w/Circ Pump Only (LX-15)

SKU: 6600-288

MPN: 6660-88

Model: LX-15

UPC: 680576083142

Manufacturer: Sundance®

Warranty: 1 yr. with manufacturer

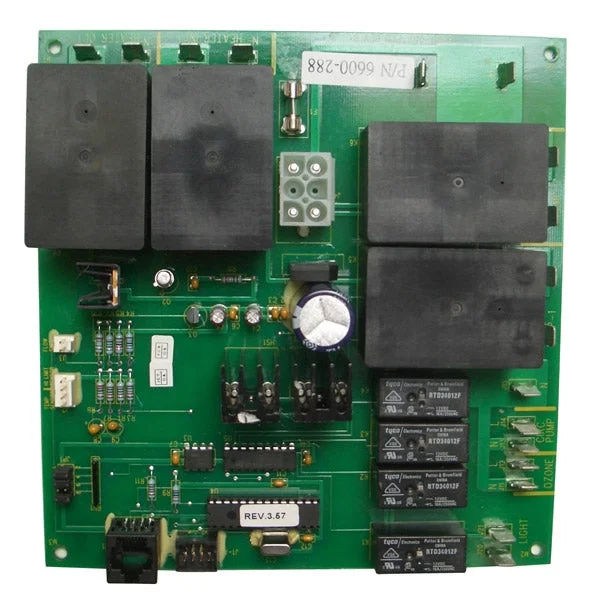

Sundance Spa/Jacuzzi® Circuit Board.

NOTE: This circuit board has been replaced with part #6600-726

Features:

• 2002+ Jacuzzi® Spas Circuit Board

Product specifications:

• Jumper3–Use in conjunction with jumper 2
• Jumper4–Centigrade on/ Fahrenheit off
• Jumper2–2 pumps on/ 1 pump off
• Jumper1–15 Amps on/50 Amps off

Alternates: SD6600-726, 6000-167, SD6000-167, SD6600-088,

The 6600-288 revision 3.57+ is used for the following Sundance Spa models:

• 2003-2006 Sundance® Bahia
• 2003-2006 Sundance®
• 2003-2006 Sundance®
• 2007 to Newer Hartford 680 (with circulation pump)
• 2007 to Newer Hawthorne 680 (with circulation pump)
• 2007 to Newer Camden 780 (1 pump systems)
• 2007 to Newer Certa 780 (with circulation pump)
• 2007 to Newer Chelsee 780 (with circulation pump)
• 2008 to Newer Burlington 680 (with circulation pump)

The 6600-288 revision 3.57+ is used for the following Jacuzzi® Spa models:

• 2002-2003 Model J-325
• 2002-Newer Model J-335
• 2002-Newer Model J-345
• 2005-2006 Model J-325
• 2007 Model J-325 240volt
• 2007-Newer Model J-355
• 2007-Newer Model J-365
• 2008-Newer Model J-375

Sundance® Spas a way of life
