DESCRIPTION

*All circuit boards will require correct board voltage install, and component voltage set-up by moving the component wires on the board, in addition to setting dipswitches correctly. Some configuration on the topside may also be required. Please reference the wiring schematics*

SKU: 56944-01 (G1351)

MPN: 56944-01

Model: BP501G1

UPC: N/A

Manufacturer: Balboa Water Group®

Warranty: 1 yr. with manufacturer

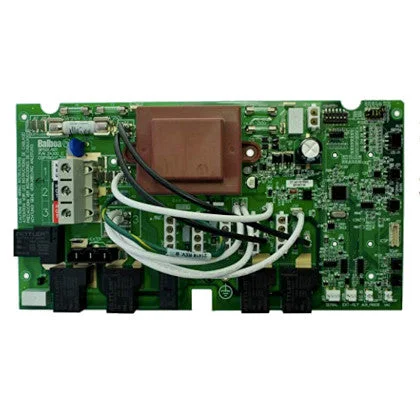

Balboa® BP series BP501G1 (Set-Up #1), works with TP Series Top Side Panel. Works with TP Series keypad panel

Features:

• Chip: BP501G1

Product specifications:

• Pump1: Blower/Pump 2
• Chip Number: BP501-X
• Connector: 4-Pin Molex
• Size: 11 ” x 5 “

*All circuit boards will require correct board voltage install, and component voltage set-up by moving the component wires on the board, in addition to setting dipswitches correctly. Some configuration on the topside may also be required. Please reference the wiring schematics*

Replaces: 56488

Documents:

•  56944-01 Tech Sheet
• TP 600 Configuration
• Board Installation Warranty Information

Balboa Water Group a Worldwide Leader in Spa the Industry
