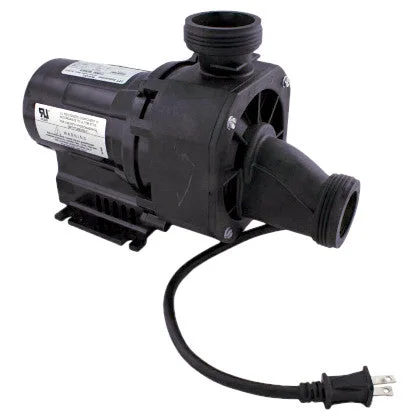

Balboa® ITT Gemini Plus 1 HP 120 Volts 12.5 Amp, 0059F88C



SKU: 0059F88C

MPN: 0059F88C

Model: Gemini Plus II

Manufacturer: Balboa Water Group®

Warranty: 1 year with manufacturer

Product specifications:

Horsepower: 1
Speed: 1
Voltage: 120
Amperage: 12.5
Hertz: 50/60
Intake Size: 1.5”
Air Switch: No
Length: 12-11/16″
Width: 5-11/16″
Discharge Height: 7-3/4″
Overall Height: 7-3/4″
Drain Plug Location: None
Suction Style: Bottom
Suction Pipe Size: 1-1/2”
Suction Connection Type: Male Buttress Thread (MBT)
Discharge Style: Center
Discharge Pipe Size: 1-1/2”
Discharge Connection Type: Male Buttress Thread (MBT)


  •  Designed for high flow bath jet systems.
  • California Title 20 Compliant
  • Includes Cord (12.5A)
  • Unions sold separately.

Replacement for: NR4-C, #0059F00CJ, #0059F88C, #0080E88C, #0013F88C, #0033F88C, #0035F88C, #0059F00C, #0059F88C.

Note: To enable variable speed functionality (low to high), you must also acquire the Balboa® Titan Control system kit 99774, which includes variable speed control. Otherwise, the pump will operate solely as a single-speed unit (on/off).
