BDLYE5K450 w/ Upper Control and Cables complete control system with K200-2OP Upper Control and Cables

***This system requires correct component voltage set-up and spa configuration. Please see the “Technical and Installation” below for easy-to-follow installation instructions.

Includes:

• YE5 control pack with heater

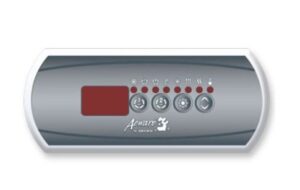

• Keypad K200-2OP
• Adapter plate for keypad
• Light and light cord
• Dual speed amp cord
• Single speed amp cord

Spa Control System Specs:

• 120/240V convertible

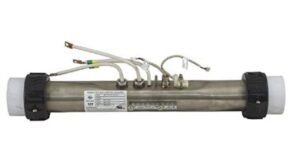

• 1.0/4.0 kw heater
• Pump 1 – 1 speed or 2 speed
• Pump 2- 1 speed or 2 speed
• Pump 3/blower – 1 speed only
• Circ pump – 120 or 240 Volts
• Light – 12V
• Ozone – 120 or 240 Volts

If using both ozone and circulation pump, you will need 9920-401369 harness:

Technical and Installation:

• • Voltage Conversion with component wires is required (pack ships with components in the “N” 120V location, you will simply need to move these to L2 240V for 240 volt components.
  • You will also need to select a configuration based on your spa components and how they operate. This is a simple process done with the control panel (see instructions)
  • Important: YE5 Installation Instructions
