DESCRIPTION

SKU: 54130

MPN: 54130

Model: VL403?Balboa® (generic for Duplex Systems)

UPC: 600291236005

Manufacturer: Balboa Water Group®

Warranty: 1 yr. with manufacturer

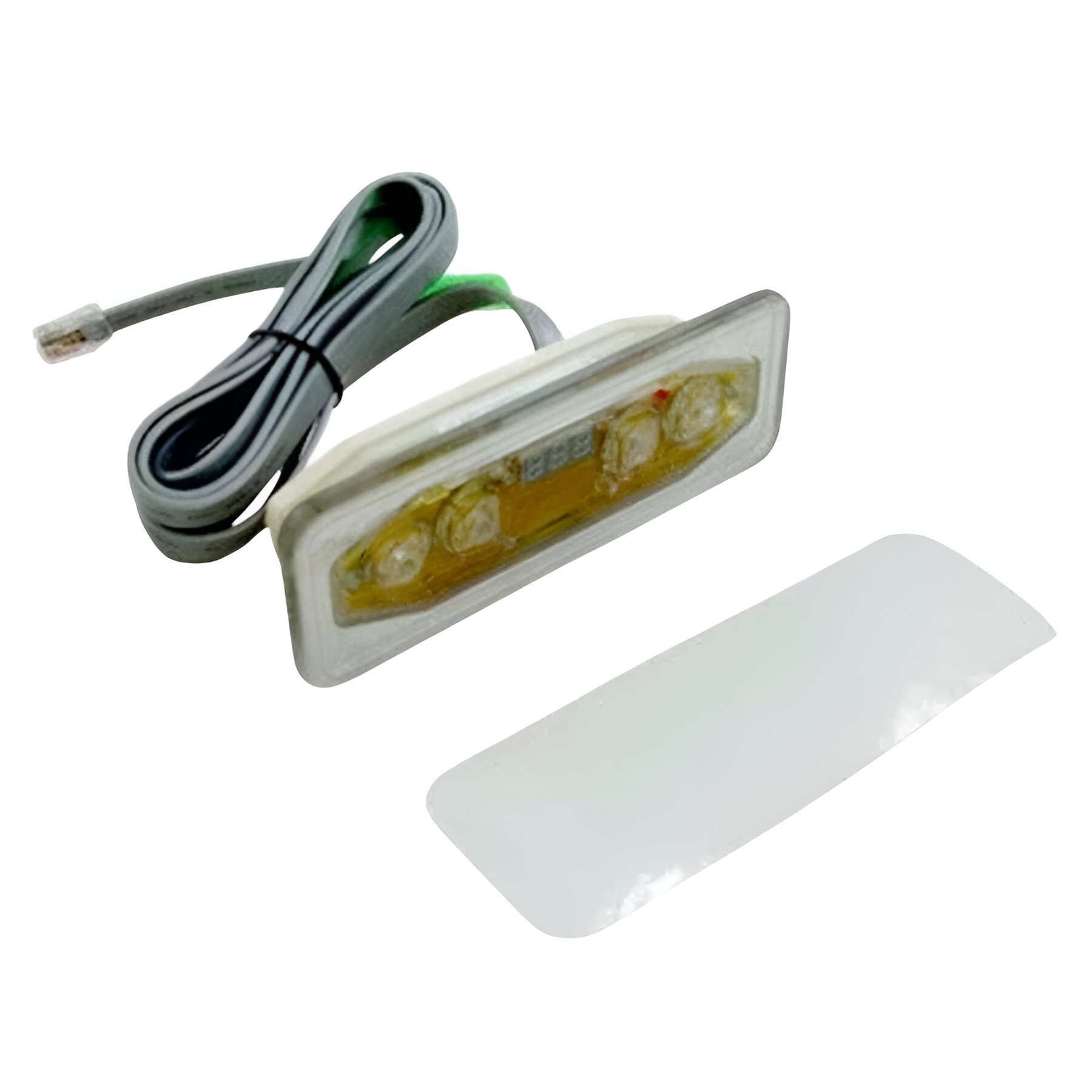

The 54130 Balboa® Topside control base Lite Duplex and VL403 topside control

Features:

• ICON10 Circuit board
• Rectangle
• LCD Display
• No Overlay

Product specifications:

• Topside type: Electronic
• Display type: LCD
• No. of buttons on Keypad: 4-Button
• Cord length: 7ft
• Type of plug: 8-Conductor phone plug (RJ45 connector)
• Panel size: 6-5/16″ x 2-1/4″ (cutout 5 1/2″” x 1 1/2″ minimum)
• Overlay: Not included?(use: #10671, #11448, #10752, #10753 or #11884)

Keypad with overlay:

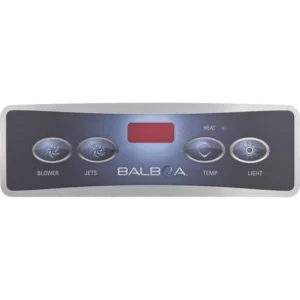

• #51676 (with #10671 Overlay)

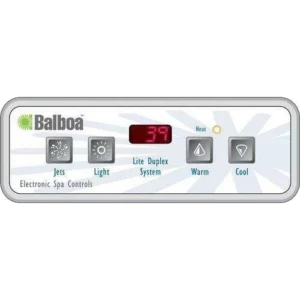

• #52345 (with #11448 Overlay)
• #54104

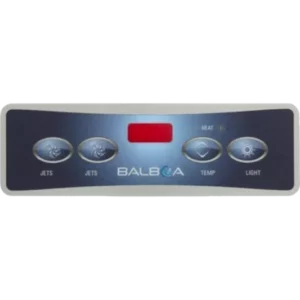

• #10752 Overlay
• #54105 (with #10753 Overlay)
• #54664 (with #11884 Overlay)

Used with: ICON10 circuit board, and is also used by Nordic® Spas, Life Smart® Spas and others.

Documents:

• 54130 Graphics template
• 54130 Cut out

Balboa Water Group a Worldwide Leader in Spa the Industry
