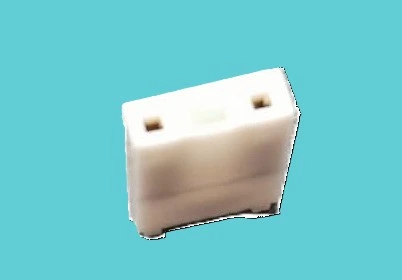

20564 Balboa Logic Jumper

The 20564 Balboa 120V Logic Jumper is a small but vital spa component that ensures the correct configuration of Balboa control systems. By setting the proper voltage logic, it allows pumps, blowers, and other features to run safely and effectively.

What the Balboa Logic Jumper Does

The 20564 jumper provides the correct communication link between your spa’s control board and its components. Without this part, the control system may misinterpret signals, causing errors in pump or blower operation.

Core Functions of the 20564 Jumper

• Configures system logic for 120V setups

• Ensures accurate electronic communication

• Supports safe pump and blower performance

• Prevents voltage mismatches in the spa control board


Features of the 20564 Balboa 120V Jumper

Though small in size, the 20564 logic jumper plays a key role in keeping your spa electronics aligned.

Notable Features

• Genuine Balboa replacement part

• Built for long-lasting durability

• Compact and easy to replace

• Maintains reliable 120V logic control


Installing the 20564 Balboa Jumper

Installing or replacing the logic jumper is a quick task when done correctly.

Simple Installation Steps

• Power off the spa completely

• Locate the jumper slot on the control board

• Insert the 20564 jumper securely into place

• Confirm placement before restoring power


Maintenance and the Balboa Logic Jumper

Routine checks of the jumper can prevent unnecessary system errors. Over time, a worn or missing jumper can disrupt communication between your spa components and the control board.

Benefits of Replacing the 20564 Jumper When Needed

• Ensures accurate voltage recognition

• Protects spa electronics from misconfiguration

• Extends control system reliability
